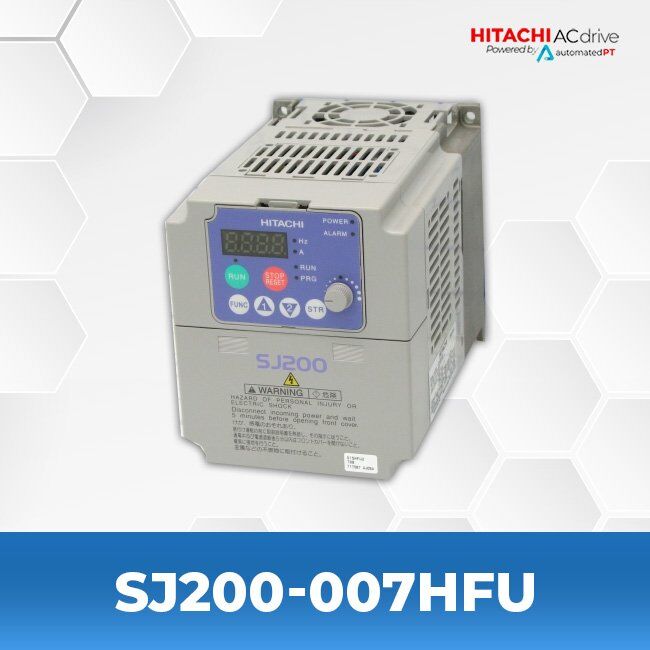

Hitachi AC Drive SJ200-007HFU

  • Series: SJ200
  • 1 Horsepower(HP)
  • 0.75 Kilowatt (KW)
  • 460 Volts
  • 2.5 Amps
  • 3 Phase
  • 3.74 pounds
This product is no longer manufactured or sold. The Hitachi recommended replacement is the WJ200-007HF drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

Replacement Drive


The SJ200 is a true muscle-man, featuring enhanced ISPM-technology with vector control. Outstanding performance and design characteristics, such as superior torque for demanding applications and exceptionally compact size, for SJ200 inverter in a class of their own. They are suited for various applications in textile, paper and printing industries as well as for all areas of the metalworking industry, cranes and elevators.

  • New Intelligent Sensorless Vector Control – NO Autotuning Required!
  • Up to 200% Starting Torque
  • Compact Industrial SJ200 Series Inverters and AC Variable Speed Drives
  • Advanced Logic and Calculate functions
  • Removable terminal strips for easy wiring
  • Dynamic Braking transistor built in
  • Advanced trip avoidance functions
  • Removable Keypad
  • NEMA4X Remote Keypad option
  • Ratings ¼ to 10hp, 230V, single and 3 phase, ½ to 10hp, 460V, 3 phase

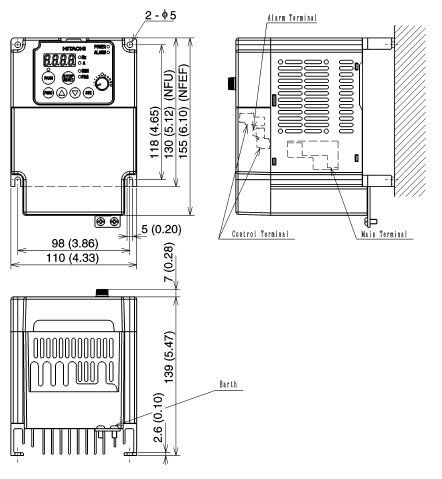

Hitachi’s SJ200 series AC drives are compact, high-torque, full-featured drives, yet are easy-to-use. Hitachi’s new technology inverter family is suitable for a wide range of drive applications. The SJ200 features high starting torque of 200% or greater at 1Hz. Drive Details Manufacturer Hitachi Series SJ200 Model SJ200-007HFU Constant/Variable Torque CT Horse Power 1 HP Maximum Amps 2.5 A Input 3-Phase 380-480V Output 3-Phase 380-480V Dimensions Height: 5.12 in Width: 4.33 in Depth: 6.54 in Enclosure IP20

Manuals and Specifications:

Quick Reference Guide Hitachi SJ200 Quick Reference Guide
Hitachi SJ200 L200 Service Manual Hitachi SJ200 Service Manual
Instruction Manual Hitachi SJ200 Instruction Manual
Brochure Hitachi SJ200 Brochure
2 Quick Reference Guide Hitachi SJ200 2 Quick Reference Guide
2 Instruction Manual Hitachi SJ200 2 Instruction Manual
