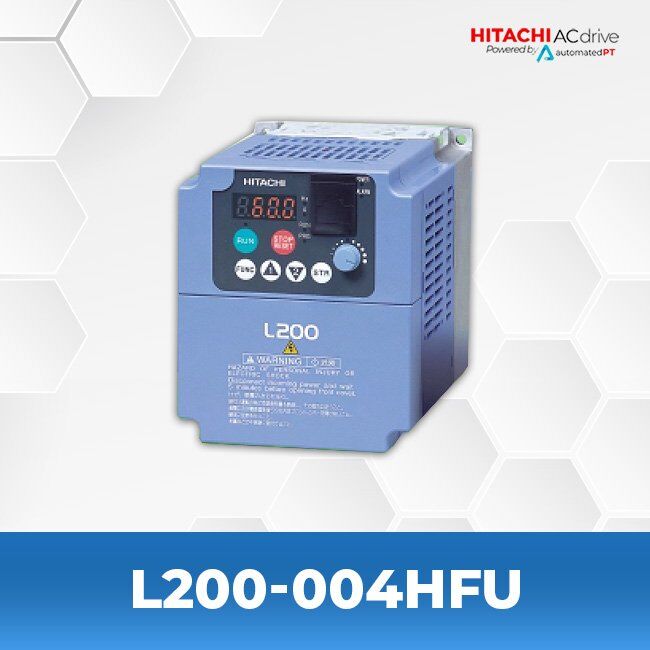

Hitachi L200-004HFU AC Drive

  • Series: L200
  • 0.5 Horsepower(HP)
  • 0.4 Kilowatt (KW)
  • 400 Volts
  • 2.6 Amps
  • 1/3 Phase
  • 1.87 pounds
This product is no longer manufactured or sold. The Hitachi recommended 3 phase replacement is the WJ200-004HF drive for a 1 phase replacement please call. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

CALL FOR 1 PH PREPLACEMENT
3 ph Replacement Drive

The Hitachi L200 delivers the cutting-edge functions you need and an ease to install and set up that you’ll love.

Key features include:

Integrated digital kepad with potentiometer
PID control
Logic and output timing functions allowing for more flexible system design
Detachable cooling fan
RS-485 serial port with integrated Modbus-RTU
Unattended start protecion
3-wire control
Analog input wire-break detection
400Hz maximum output frequency
+/- .01Hz frequency accuracy
14 protectivew functions including overload, over-current, and over/under-voltage

Drive Details

Manufacturer
Hitachi

Series
L200

Model
L200-004HFU

Condition

Constant/Variable Torque
CT

Horse Power
0.5 HP

Maximum Amps
1.5 A

Input
3-Phase
380-460V 50/60 Hz

Output
3-Phase
380-460V 50/60 Hz

Enclosure
IP20

Dimensions
Height: 5.12 in
Width: 4.33 in
Depth: 5.08 in

Manuals and Specifications:

Quick Reference Guide Hitachi L200 Quick Reference Guide
Brochure Hitachi L200 Brochure
Quick Reference Guide Hitachi L200 2 Quick Reference Guide
Instruction Manual 2 Hitachi L200 Instruction Manual 2
Instruction Manual Hitachi L200 Instruction Manual
